1. Product name

MA-(0.3～3)×1600mm GI PPGI Coil Slitting Machine for thickness 0.3-3 is thin sheet

2. General Introduction:

MA-(0.3～3)×1600mm GI PPGI Coil Slitting Machine is a very popular size line in Middle East market. The thickness 0.3-3 is thin sheet, for thin sheet slitting line is suitable for coil strip thickness (0.2~1) mm, (0.3-2) mm, (0.3-3) mm and (0.4-4)mm; while coil width is changeable: 600mm. 1000mm, 1250mm, 1600mm, 1800mm , strip width is according to client’s requirements.

3. Detailed technical data for MA-(0.3～3)×1600mm GI PPGI Coil Slitting Machine:

MA-(0.3～3)×1600mm Coil Slitting Machine in Serbia
Material of coils: HRC, CRC, GI, PPGI, Q195, Q235, Q345...
Strip thickness: (0.3-3) mm
Max. Strip width: 1600mm
Coil ID: ≥Φ508mm
Coil OD: Φ1800mm
Max. Coil weight: 20000Kgs
Slitter motor: 75KW DC motor
Slitter shaft: Ф220 x 1650mm
Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
Separating disc: ID85 x OD210mm x 6mm, 65Mn
Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
Recoiler block: Ф508 x 1700mm
Recoiler motor: 90KW DC motor
Electric control: Eurotherm 590 DC driver cabinet plus control panels.
Slitting speed: max 100m/min, adjustable.

4. Machine main components::

Feeding trolley- single-arm feeding machine, coil leading device - tilting platform - looper1 - rectification - disc shear - waste scrap winding - looper2 - pre-slitting, tension machine, length measuring roller - recoiling - unloading trolley- hydraulic control - electrical control

5. Production line flowing chart::

6.Specification form of MA-(0.3～3)×1600mm GI PPGI Coil Slitting Machine:

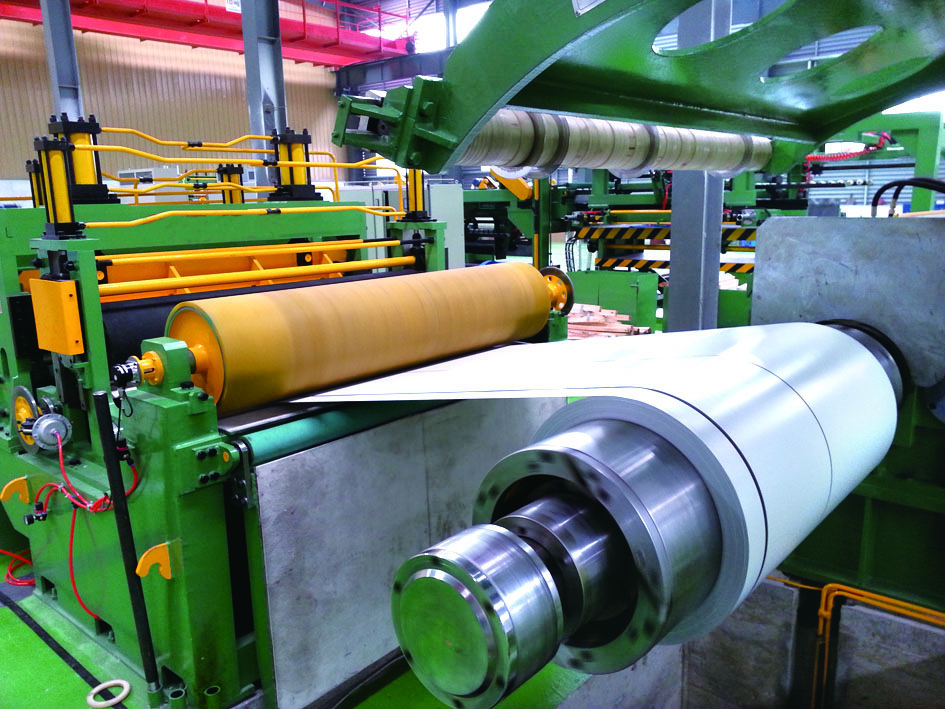

7.Machine Photo for reference:

8.Our service and features:
8.1 Design: MAZS have a matured and experienced technical team with rich experience to develop and design the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. MAZS have more than 20 years experiences in this field.
8.3 This kind of machine has superior quality and reliable service. It has high accuracy and easy operation.
8.4 MAZS supply technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality reasonable price and reliable service, quick action for after sale service.
