1. Description of goods:

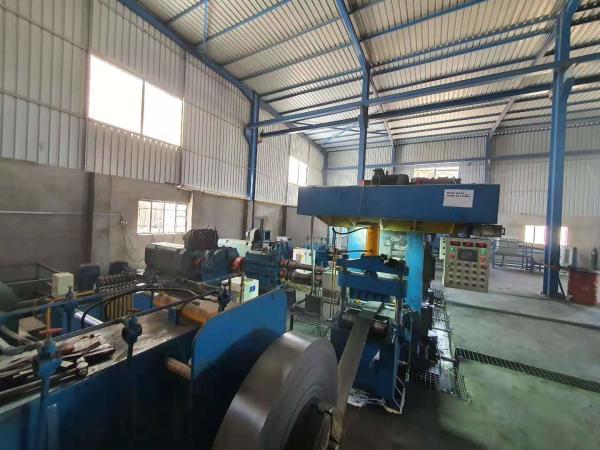

MA Φ150 × 220 Steel cold Rolling mill equipped with heavy duty reduction gear hydraulic expansion cylinder for Coiler
2. Introduction:
The 2-Hi cold rolling mill, one of metal coil cold rolling mill, is
made from good quality raw material. At the same time, we are
upgrading with the latest technological equipments when producing
this cold rolling mill. Due to different numbers of rollers, the
metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and
12 Hi AGC.
3. Rolling Conditions:
Material: carbon steel
Input width: ≤150mm, thickness: 2.75mm
Output width: ≤150mm, thickness≥: 0.8mm
Rolling force: p=60t
Rolling speed: v≤13m/min
4. Technical Parameters of 2-Hi Cold Rolling Mill:
Type | Φ120 × 160 | Φ150 × 220 | Φ175 × 400 | Φ250 × 500 | Φ320 × 600 | Φ400 × 800 | Φ500 × 1000 |
Input thickness (mm) | ≤4 | ≤4 | ≤4 | ≤8 | ≤10 | ≤20 | ≤30 |
Output thickness (mm) | 0.15 | ≥0.35 | ≥0.35 | ≥0.4 | ≥0.4 | ≥0.5 | ≥0.6 |
Strip (mm) | 10-100 | ≤150 | 300 | 370 | 450 | ≤600 | 800 |
Rolling pressure (T) | 65 | 100 | 100 | 120 | 150 | 160 | 260 |
Rolling speed (m/min) | 12 | 13 | 13 | 13 | 13-15 | 13-15 | 15-25 |
Main motor (KW) | 22 | 30 | 37 | 55 | 75 | 155 | 160 |
Press-down motor (KW) | 1.5 | 2.2 | 2.2 | 3 | 4 | 4 | 7.5 |
Press-down speed (mm/s) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.12 | 0.12 |
Speed reducer | JZQ550 | JZQ750 | JZQ750 | JZQ750 | JZQ1000 | JZQ115 | JZQ130 |
Weight (T) | 4.8 | 5.8 | 7 | 12.8 | 19 | 40 | 50 |
![]() |
