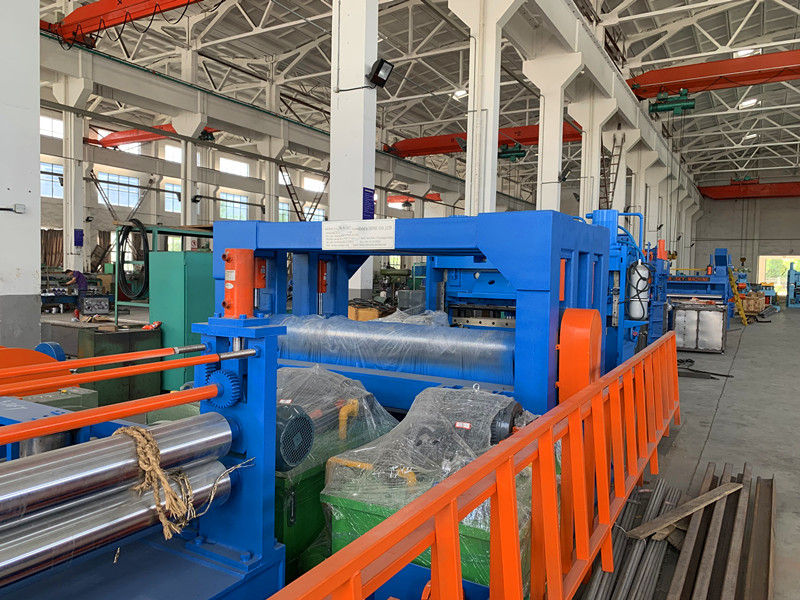

    3x1600mm Sheet Cut To Length Line Stably Speed Edge No Burr

    Ask Lasest Price
    Brand Name : MAZS
    Model Number : MA-(0.3-3)×1600mm
    Certification : CE
    Price : USD
    Payment Terms : 100% at sight LC or 30% deposit and 70% before shipping.
    Supply Ability : 30sets per year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    3x1600mm Sheet Cut To Length Line Stably Speed Edge No Burr

    1. Description of goods:

    Automatic rotary shear stacking line Middle & heavy thickness Cut to Length Line with stably speed ,the edge no burr


    2. Introduction:
    Middle thick plate cut-to-length line can meet customer’s request of max line speed 40m/min by uncoiling & leveling a coil strip, and then shearing the leveled flat strip to certain length of sheets.
    This coil CTL line is especially suitable for CR, HR carbon steel coils, GI, PPGI steel plates.
    The plate cut-to-length line (coil CTL line) has one leveling machine driven by DC or AC motor, and the length-fixing is by encoder, shearing style is stop-shear.
    The middle thick plate cut-to-length line fit steel coils with thickness: (1~6mm, 2~8mm, 3-10mm) and changeable width, and length of finished sheets depend on customer’s practical need.

    3. Advantages & Characteristics for this coil CTL line:
    1. High precision
    Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in average.
    Leveling precision: ±1mm/㎡
    Sheet length precision: ±0.5mm/m
    Sheet diagonal length precision: ±0.5mm/m

    4. Main technical parameter :

    Material of coils: HRC, CRC, GI, PPGI, Q195, Q235, Q345...
    Strip thickness: (0.3-3) mm
    Max. Strip width: 1600mm
    coil ID: ≥Φ508mm
    Coil OD: Φ1800mm
    Max. Coil weight: 20000Kgs
    Slitter motor: 75KW DC motor
    Slitter shaft: Ф220 x 1650mm
    Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
    Separating disc: ID85 x OD210mm x 6mm, 65Mn
    Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
    Recoiler block: Ф508 x 1700mm
    Recoiler motor: 90KW DC motor
    Electric control: Eurotherm 590 DC driver cabinet plus control panels.
    Slitting speed: max 100m/min, adjustable.


    5. Detail specification of coil CTL line:

    ModelThicknessCoil WeightFinished slitMax Slitting speed
    MA-1 x 6000.2-1mm100-600mmMax 8TMin. 20mm50m/min
    MA-2 x 13000.3-2mm300-1300mmMax 15TMin. 25mm80m/min
    MA-3 x 16000.3-3mm500-1600mmMax 20TMin 25mm100m/min
    MA-4 x 16000.4-4mm500-1600mmMax 30TMin 30mm80m/min
    Note: The data in the form just as reference according to general ranges, we always design and make each line according to each customer’s specific requirements, so each customer can buy his own well-content line from us.
