    12 Hi AGC Reversing Cold Rolling Mill

    Ask Lasest Price
    Model Number : 12-Hi AGC Reversing Cold Rolling Mill
    Payment Terms : T/T, L/C
    Delivery Time : 5 months
    • Product Details
    • Company Profile

    12 Hi AGC Reversing Cold Rolling Mill

    1. Product description:

    12-Hi AGC Reversing Cold Rolling Mill for Sheet Coils


    2. Introduction:
    The 12-Hi AGC Reversing Cold Rolling Mill for Sheet Coils, one of metal coil cold rolling mill, is made from good quality raw material. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill. Due to different numbers of rollers, the metal coil cold rolling mill is divided into2 Hi, 4 Hi, 6 Hi, and12 Hi AGC.

    3. Features:

    • The 12-Hi AGC cold rolling mill is a kind of portable type.
    • One stand and two frames are made from fabricated steel plates.
    • The number 2 Rolls on this equipment are made of chilled material.
    • It is equipped with heavy duty reduction gear.
    • The screw down system is manual.
    • We adopt one number C.I. casting flywheels.


    4. Technical Parameters:


    ​Model No.

    Technical Parameters

    650750850
    MaterialCarbon steel & low alloy steelCarbon steel & low alloy steelCarbon steel & low alloy steel
    Material Thickness (mm)2.0-3.02.0-3.02.0-3.0
    Material Width (mm)400-500500-650600-750
    Output Thickness (mm)0.18-0.50.18-0.50.18-0.5
    Rolling Force (KN)550065007500
    Backup Roller Size (mm)Φ550×600Φ650×700Φ750×820
    Middle Roller Size (mm)//Φ300/Φ280×820
    Work Roller Size (mm)Φ185/Φ165×650Φ205/Φ190×750Φ230/Φ205×850
    Drive ModeBy work rollerBy work rollerBy work roller
    Main MotorDC motorDC motorDC motor
    ReducerCombined gearboxCombined gearboxCombined gearbox
    Uncoiler (optional size)Φ508/Φ610×650Φ508/Φ610×750Φ610×850
    Recoiler (optional size)Φ508×650Φ508×750Φ508×850
    Rolling Speed (m/min.)180-480240-600240-600
    Uncoiler Tension (KN)303545
    Recoiler Tension (KN)10-7010-8010-90
    Screwdown MethodMechanical/Hydraulic AGCMechanical/Hydraulic AGCMechanical/Hydraulic AGC

    Note: The above parameters are for reference only, it could be manufactured according to customer's requirements.

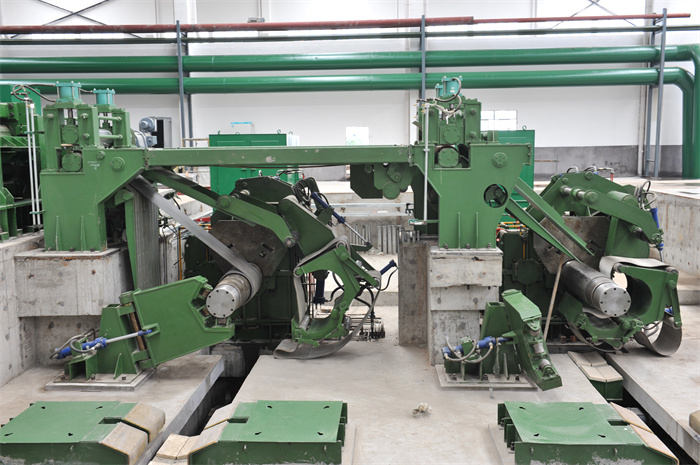

    5. Machine photo for reference:


    6. Packaging:

    Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.


    7. Warranty term: 12 months (excluding easy-broken parts)


    8. Our service and features:

    8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
    8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.

    8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.

    8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
    8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
