1. Product name:
Middle Thick sheet Cut to Length of equipment high speed uncoiling
for different sizes coils by PLC controled.
2. Introduction:
Middle thick plate cut-to-length line can meet customer’s request
of max line speed 40m/min by uncoiling & leveling a coil strip, and
then shearing the leveled flat strip to certain length of sheets.
This coil CTL line is especially suitable for CR, HR carbon steel
coils, GI, PPGI steel plates.

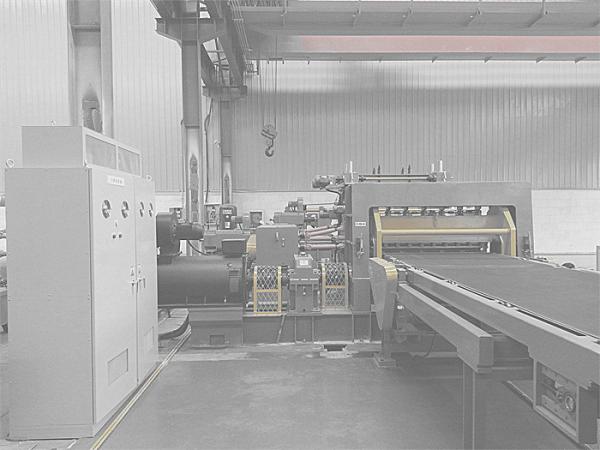

The plate cut-to-length line (coil CTL line) has one leveling
machine driven by DC or AC motor, and the length-fixing is by
encoder, shearing style is stop-shear.
The middle thick plate cut-to-length line fit steel coils with
thickness: (1~6mm, 2~8mm, 3-10mm) and changeable width, and length
of finished sheets depend on customer’s practical need.
3. Detail specification of coil CTL line:
| Model | Thickness | | Length | Leveling speed |
| MA-6 x 1600 | 1.0-6.0mm | 600-1600mm | adjustable | Max 40m/min |
| MA-8 x 1800 | 2.0-8.0mm | 1000-1800mm | adjustable | Max 30m/min |
| MA-10x 2000 | 3-10mm | 1000-2000mm | adjustable | Max 30m/min |
| Note: The data in the form just as reference according to general
ranges, we always design and make each thick plate cut-to-length
line (coil CTL line) according to each customer’s specific
requirements, so each customer can buy his own well-content line
from us. |
4. Advantages & Characteristics for this coil CTL line:
High precision;
Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in
average;
Leveling precision: ±1mm/㎡;
Sheet length precision: ±0.5mm/m;
Sheet diagonal length precision: ±0.5mm/m;
5. Our service:
Designing:
After order confirmation, we start to design the machine, such as
the basement, structure,power, cutting device, programs and so on.
6. Loading:

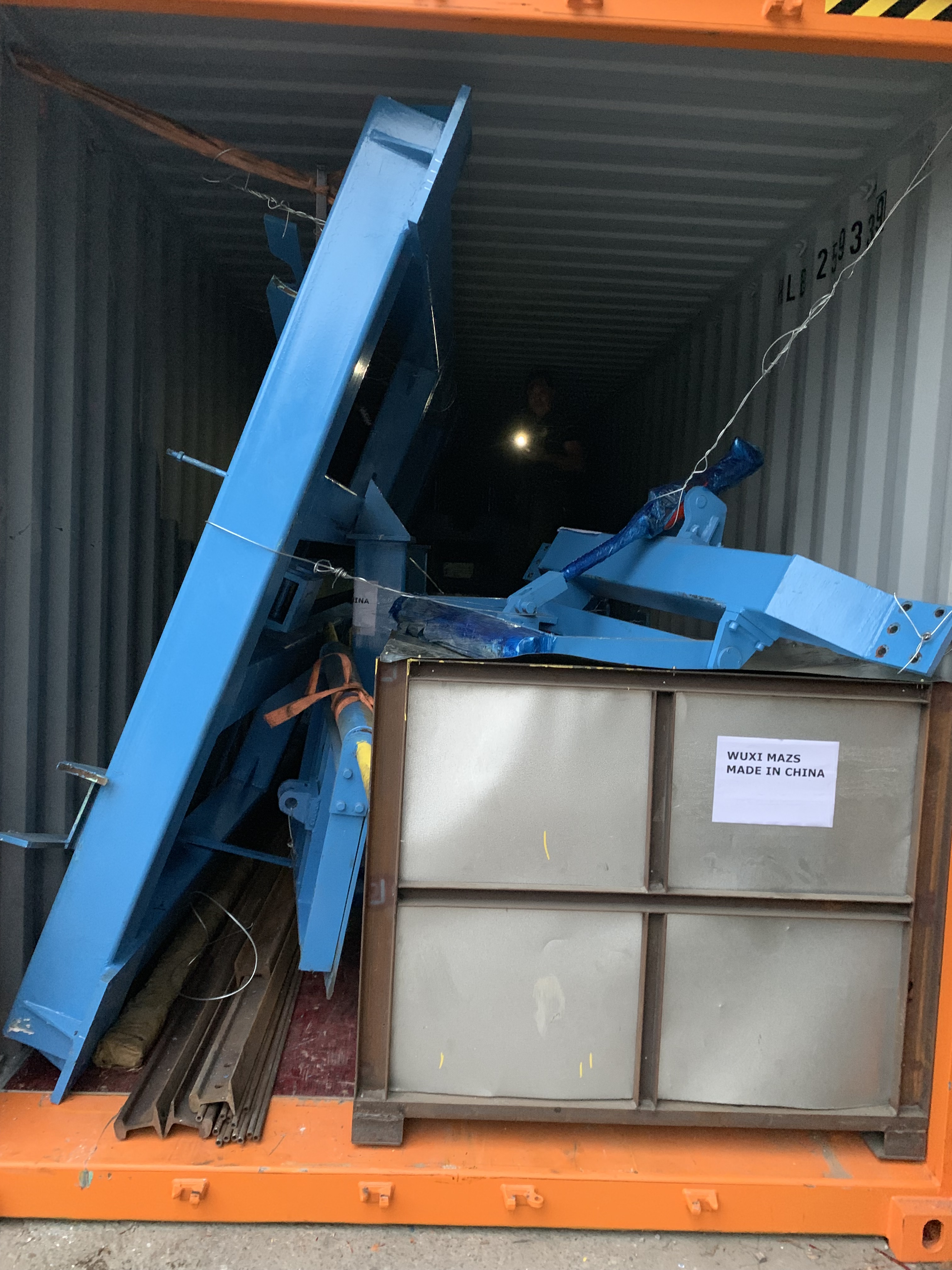

Machine will be fixed inside container by steel wire, in order to
make sure it won’t move during transportation and avoid any kinds
of damage of machine and container.
