1.Description of goods:

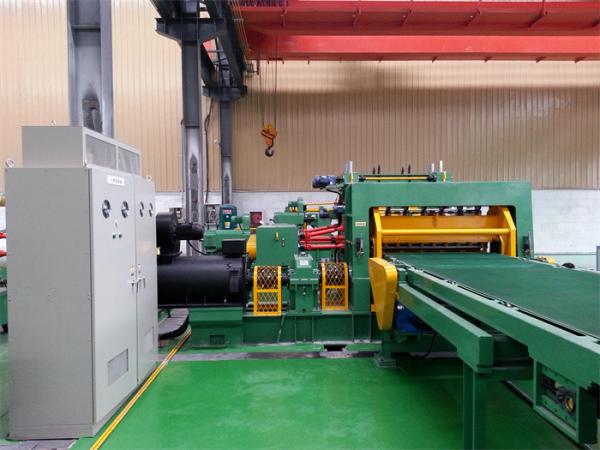

380V 50Hz 2.0-8.0mm Precision Metal Cut To Length Line for Steel Coil rotary shear cut to length line

2.Advantages & Characteristics for this coil CTL line:
High precision
Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in average.
Leveling precision: ±1mm/㎡
Sheet length precision: ±0.5mm/m
Sheet diagonal length precision: ±0.5mm/m

3. Technical parameter for MA- (2-8)×1250mm/ 1500mm/2000mm Cut to Length Line:

Input material: CR, HR carbon steel coils, GI, PPGI steel plates.

Strip thickness: 2~8mm
Strip width of coil CTL line: 300~1250mm/1500mm/2000mm
Leveling roller: Φ180mm
Material of leveling roller: 40Cr, HRC56-58
Power for leveling: 90KW/110KW DC motor + Eurotherm 590 DC speed control.
Cutting speed: (0~30) m/min, adjustable

WUXI MAZS MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD. is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and four production bases. Our main products are metallurgy machinery such as metal coil cold rolling mill lines, slitting lines, HF welded pipe mill lines, cut-to-length lines, roll forming machines, etc.

Which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the manufacturing enterprise participated in the above mentioned Equipment Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: “Proceed from Optimum in Everything; and Satisfy Customer’s Demand and Expectation with High Quality Products and Excellent Service.”

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
