1. Description of goods:

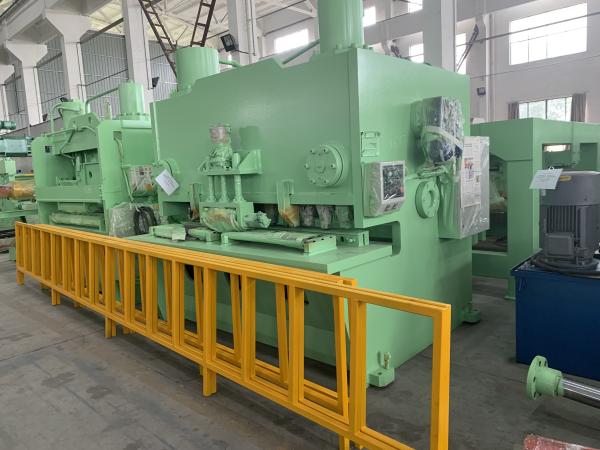

MA-(5-20)×2000mm Sheet Slitting Line high speed hydraulic decoiler
with three steps by PLC.
2. Introduction:
This thick plate slitting line, also called metal coil slitter, is
able to slit thick steel master coil into small baby coils. The
thick coil slitting line is composed of: coil-loading car, double
mandrel big-load uncoiler, portal style coil-head guide, press and
shovel equipment, double roller pinching feeder, five-roller
leveler, end-cutter, Roll table, Central aligner, Disc slitter,
scrap winder, hole accumulator, pre-separator& tensioner, Portal
style coils-separator and presser, recoiler, coil unloading car,
hydraulic control, and electric control.
Capacity of different models of thick sheet slitting lines (metal
coil slitter):
Strip thickness: (3~12) mm, (4-16)mm, (5~20) mm;
Strip width: 500-1800mm, 800~2000mm or 1000~2200mm.
3. Techncial parameter
Material of coils: HR/CR carbon steel such as Q235, galvanized
plate, colored steel plate etc.
Metal Coil Slitter Strip thickness: (5~20) mm.
Strip width: 800~2000mm.
Max.coil weight: 40000kgs.
Diameter of leveling rollers & tensioning roller: Φ260.
Metal Coil Slitter Diameter of slitter shaft: Φ420.
Coil Slitting Machine Disc cutters: 6CrW2Si, HRC54°~56°, OD650mm x
ID420mm x T50mm.
Diameter of recoiler block: Φ800mm.
Separating discs: 65Mn, OD250 x ID110 x T10/20mm.
DC motors for slitter and recoiler: 280KW, 315KW.
Coil Slitting Machine Slitting speed: (0~20) m/min, adjustable.
4. Specifications of Metal Coil Slitter:
| Model | Thickness | | Coil Weight | Finished slit | Max Slitting speed |
| MA-12 x 1800 | 3-12mm | 600-1800mm | Max 35T | Min. 60mm | 30m/min |
| MA-16 x 2200 | 4-16mm | 800-2200mm | Max 40T | Min. 100mm | 30m/min |
| MA-20x 2000 | 5-20mm | 800-2000mm | Max 40T | Min 100mm | 20m/min |
| Note: The data in the form just as reference according to general
ranges, we always design and make each sheet slitting line
according to each customer’s specific requirements, so each
customer can buy his own well-content coil slitting machine from
us. |
5. Our service
Designing:
After order confirmation, we start to design the machine, such as
the basement, structure,power, cutting device, programs and so on.
Loading:
Machine will be fixed inside container by steel wire, in order to
make sure it won’t move during transportation and avoid any kinds
of damage of machine and container.
6. Main features
1. We can make and design all kinds of special machine according to
customer's requests.
2. This is a very perfect and durable equipment. We have more than
10 years experiences.
3. This kind of machine has the best quality and the best price. It
has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according
to the customers' requirement and we could provide technical
guiding, production, installation, debugging and maintenance
service to all customers.
5. Our product has been exported to many regions and won high
reputation because of the high quality and reasonable price.
