    1.5-5mm Steel Coil Slitting Machine

    Ask Lasest Price
    Brand Name : WUXI MAZS
    Model Number : MA1.5-5X1500
    Payment Terms : T/T, L/C
    Supply Ability : 30 SETS PER YEAR
    Delivery Time : 20-40 working days
    • Product Details
    • Company Profile

    1.5-5mm Steel Coil Slitting Machine

    1. Product description: MA1.5-5X1500 Slitting Line


    MA1.5-5X1500 Slitting Line is used for decoiling, slitting and recoiling of hot-rolled steel coils.

    2. Specifications:


    NO.NameParameters
    1

    Applicable material

    hot rolled, cold rolled, galvanized coil

    2

    Thickness of material

    1.5-5mm

    3

    Material width

    Max. 1000-1500mm

    4

    Inner diameter of steel coil

    φ508-φ610-φ760

    5

    Outer diameter of steel coil

    Max. φ2000mm

    6

    Weight of steel coil

    ≤1400 mm
    7Weight

    Max. 25T

    8

    Thickness of finished product

    1.5-5 mm

    9

    Inner diameter of finished coil

    Φ508 mm

    10

    Outer diameter of finished coil

    ≤φ2000 mm

    11

    Slitting number

    ≤8 3.5-5mm

    ≤15 1.5-3.0 mm

    12

    Width tolerance of finished product

    ±0.2mm

    13

    Min. slitting width

    30mm

    14

    Slitting speed

    0-100M/Min, Continuously

    15

    Cutter shaft diameter

    Φ250mm



    3. Configurations:


    ■ Coil car■ Three-step expansion decoiler
    ■ Material uncoiling device■ Pinch, levelling, shearing
    ■ Roller table■ Guiding centering device
    ■ Slitting machine■ Side scrap device
    ■ Storage looper■ Tension station
    ■ Hydraulic expandable recoiler■ Discharge coil car
    ■ Hydraulic control system■ Electrical control system


    4. Process Flow:

    V-shaped preparation table - coil car - decoiler - material uncoiling device - pinch and leveler - hydraulic shearing machine - transition roller table- guiding centering device - slitting machine - side scrap device - storage pit - 5-roller tension device - recoiler - discharge coil car

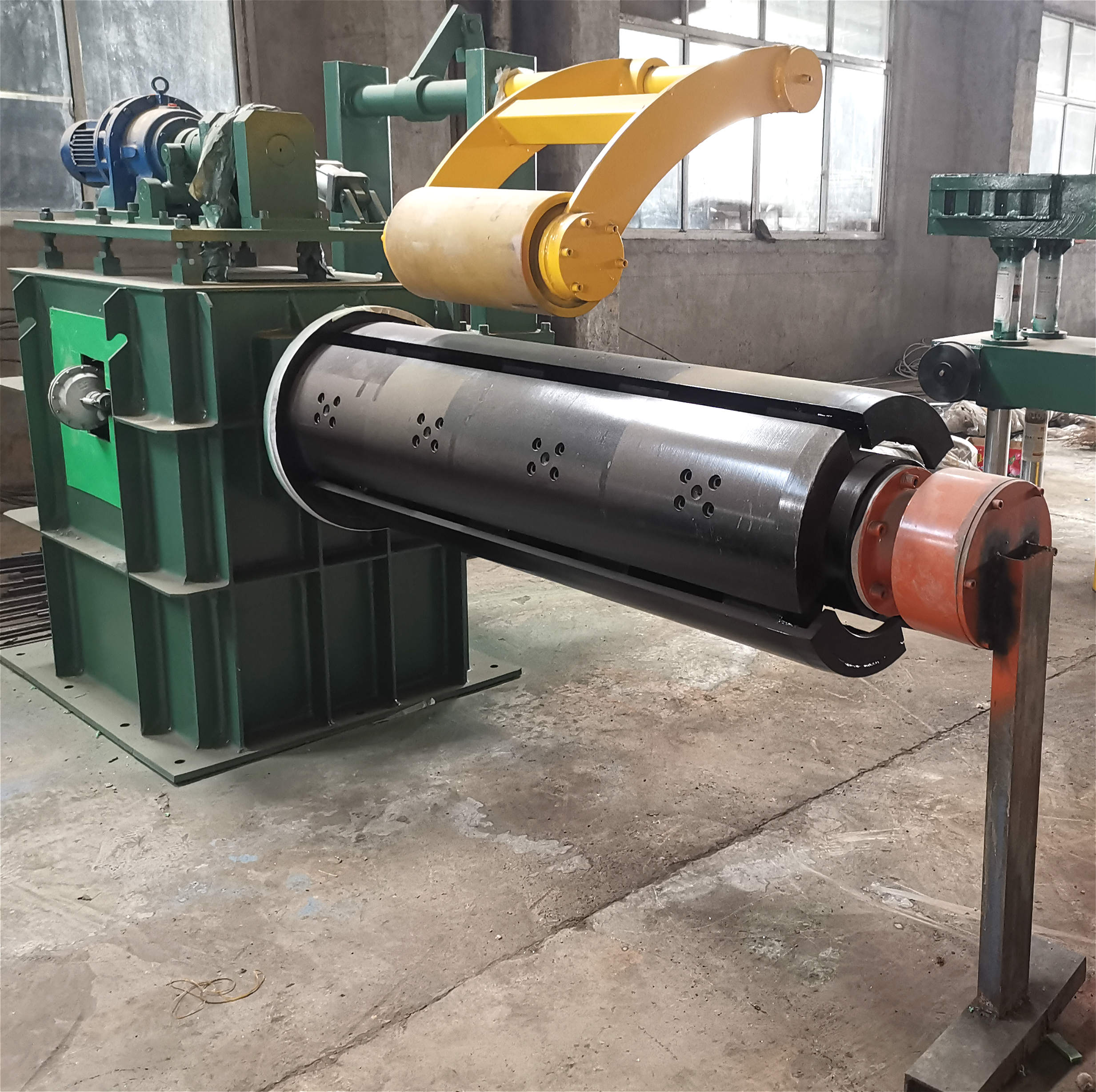

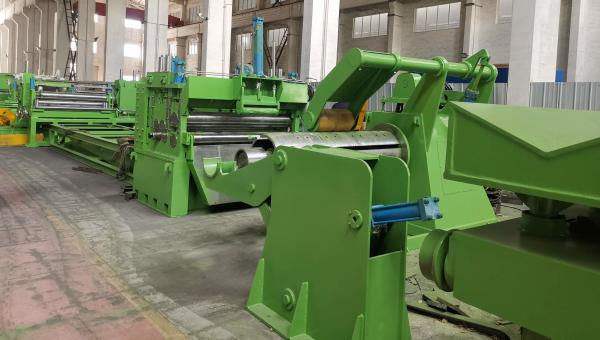

    5. Machine photo for reference:



    6. Packaging

    Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.

    7. Warranty term: 12 months (excluding easy-broken parts)

    8. Our service and features:
    8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
    8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.

    8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
    8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
    8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
