1. Description:
MA219 High Frequency Welded Pipe Mill with DC Motor

2. Technical Specification:

• Material to be processed: carbon steel, cold hot rolled pre slit strip coils of weld able grade with max. 0.2% carbon
• Type of Production: Round Tubes Squar, Square and Rectangular Hollow Sections
• Round Tube Outside Diameter: Min 114, Max 219mm
• Square Hollow Section: Min 90 x90, Max 170x170 mm
• Rectangular Hollow Section: Min 80x 100, Max140x 200 mm
• Tube Thickness: Min 2.2, Max 8.0 mm
• Forming Line Speed: Max 45m/min (Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)
• Tube Cut Length: Min 4 Max 12 meter
• Length Accuracy: ± 3mm

3. ​Line Composition:

• V-shape pre-discharging table (V coil stand)
• Hydraulic charging wagon (coil car)
• Hydraulic discharging machine (uncoiler)
• Leveler and flattener
• Shear and TIG Welder.
• Horizontal Strip Accumulator.
• Forming, Welding, Cooling and Sizing Section. Drive Motor: DC 90kw×4
• Computer Flying Saw Cut-Off.
• Straightener
• End Milling and Chamfering Machine
• Baling Press
• Driven Roller Run Out Table, Inspection table & Collectors.
• Solid State H.F. Induction Welder: 600 kW, Solid State Type
• Rolls: Rolls are manufactured out of AISI D3 D2 or E52100
• Hydraulic Units
• Electrical Panels

4. Technical Parameters:

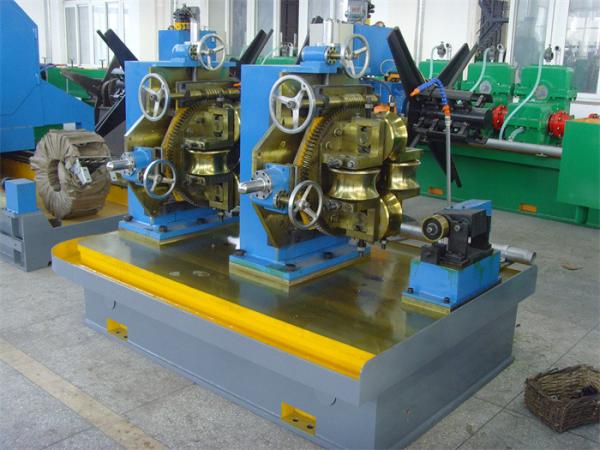

5. Photo for Reference:

6. Packaging

Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.

7. Warranty term: 12 months (excluding easy-broken parts)

8. Our service and features:

8.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
8.2 This is a very perfect and durable equipment. We have more than 10 years experiences.

8.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.

8.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
8.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.
