1.Description of goods:

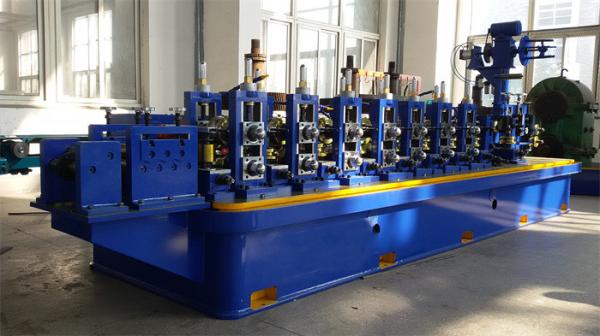

MA-Φ50 High Frequency Welded Pipe Mill for all kinds of pipes deburring one welding line with stably working speed

2.Specification:

• Material to be processed: carbon steel, cold rolled, hot rolled pre-slit strip coils.
• Steel Grade: 0.2% carbon
• Type of Products: Round Tubes, Square tubes, Rectangular tubes as well as Hollow Sections
• Round Tube Outside Diameter: 15-63mm
• Square tubes: Min 10 x10 Max 50 x 50 mm
• Rectangular tubes: Min 10 x 15 Max 40x 60 mm
• Tube Thickness: Min 0.5 Max 3.25 mm
• Forming Line Speed: Max 100 m/min (Square and Rectangular tubes are produced at lower speeds which depend on side to wall thickness ratio)
• Tube Cut Length: Min 4 Max 12 meter
• Length Accuracy: ± 3mm
• Main Drive Motor: DC 55kW×2
• Line Composition:
• Double Mandrel Uncoiler
• Shear and TIG Welder
• Horizontal Strip Accumulator / Cage Accumulator
• Forming, Welding, Cooling and Sizing Section.
• Computer Flying Saw Cut-Off.
• Run-Out Roll Table, Inspection table Collectors.
• Solid State H.F. Induction Welder: 150 KW, Solid State (or 200KW,Vaccum Tube Type).
• Rolls: Rolls are manufactured in accordance with AISI D3 D2 or E52100
• Electrical control cabinets

3.Technical parameter:

WUXI MAZS MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD. is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and four production bases. Our main products are metallurgy machinery such as metal coil cold rolling mill lines, slitting lines, HF welded pipe mill lines, cut-to-length lines, roll forming machines, etc.

Which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the manufacturing enterprise participated in the above mentioned Equipment Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: “Proceed from Optimum in Everything; and Satisfy Customer’s Demand and Expectation with High Quality Products and Excellent Service.”

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
