1. Product Description:
MA 50 High-frequency Welding Pipe Mill Tube Thickness Min 0.8 Max
3.0mm carbon steel, cold rolled, hot rolled pre-sli
2. Introduction:
This MA 50 High-frequency Welding Pipe Mill is specialized equipment to produce high frequency straight seam
welded pipes for structural pipe and industrial pipe with
Φ20mm~Φ63mm and wall thickness of 0.8~3mm. Through optimization
design, best materials choice, and accurately fabrication and
rolls, the whole line can be reached high precision and high speed.
Within suitable range of pipe diameter and wall thickness, pipe
production speed can be adjusted.
3. Work process:
Uncoiling→ Accumulating→ Leveling→ Forming→ HF welding→ Deburring
(outer) → Cooling→ Sizing→ Straightening→ Cutting→ Discharging
4. Configuration:
| Description | Optional |
| Decoiler | Double/Single-head/Manual/Pneumatic/Hydraulic |
| Shear &butt welding | Manual/Pneumatic welding |
| Accumulator | Vertical/Horizontal accumulator |
| Forming & sizing unit | DC motor/AC motor |
| Solid HF welder | Traditional solid/Integrated welder |
| Computer flying saw | Hot saw/Cold saw |
| Run-out table | Passively/Pneumatic turnover |
5. Technical Parameters:
| Model No. | MA50 | MA60 | MA76 | MA89 |
| Outer diameter | Φ20~63 MM | Φ25~76MM | Φ32~89 MM | Φ35~102 MM |
| Wall thickness | 0.8~3.0 mm | 1.0~3.2 mm | 1.2~3.75 mm | 1.2~4.0 mm |
| Production speed | 0~80 m/min. | 0~80 m/min. | 0~70 m/min. | 0~70 m/min. |
| Driving motor power | 90 Kw*2 sets | 90 Kw*2 sets | 132 Kw*2 sets | 132 Kw*2 sets |
| HF welder power | 200 KW | 200 KW | 300 KW | 300 KW |

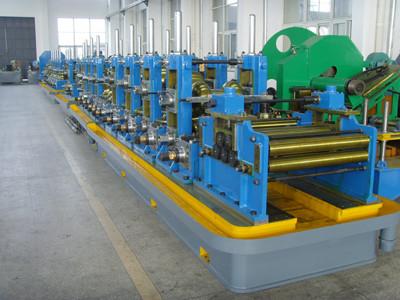

6. Photos for reference:
7. Technical specifications:
- Material to be processed: carbon steel, cold rolled, hot rolled
pre-slit strip coils.
- Steel Grade: 0.2% carbon
- Type of Products: Round Tubes, Square tubes, Rectangular tubes as
well as Hollow Sections
- Round Tube Outside Diameter: 15-63mm
- Square tubes: Min 10 x10 Max 50 x 50 mm
- Rectangular tubes: Min 10 x 15 Max 40x 60 mm
- Tube Thickness: Min 0.5 Max 3.25 mm
- Forming Line Speed: Max 100 m/min (Square and Rectangular tubes are
produced at lower speeds which depend on side to wall thickness
ratio)
- Tube Cut Length: Min 4 Max 12 meter
- Length Accuracy: ± 3mm
- Main Drive Motor: DC 55kW×2
- Line Composition:
- Double Mandrel Uncoiler
- Shear and TIG Welder
- Horizontal Strip Accumulator / Cage Accumulator
- Forming, Welding, Cooling and Sizing Section.
- Computer Flying Saw Cut-Off.
- Run-Out Roll Table, Inspection table Collectors.
- Solid State H.F. Induction Welder: 150 KW, Solid State (or
200KW,Vaccum Tube Type).
- Rolls: Rolls are manufactured in accordance with AISI D3 D2 or
E52100
- Electrical control cabinets
8. Packaging
Machine will be fixed inside container by steel wire and special
PET strap, in order to make sure all parts will not move during
transportation and avoid any kinds of damage of machine and
container.
9. Warranty term: 12 months (excluding easy-broken parts)
10. Our service and features:
10.1 Design: We have a matured technical team with rich experience to develop
and deisng the machines according to customer's demand and
requirements.
10.2 This is a very perfect and durable equipment. We have more than 10
years experiences.
10.3 This kind of machine has the best quality and the best price. It
has accurate measurement and easy operating.
10.4 We provide technical support (both before, during and after sales),
production, installation, commissioning and maintenance service to
all customers.
10.5 Our product has been exported to many regions and won high
reputation because of the high quality and reasonable price.
