1. Description:

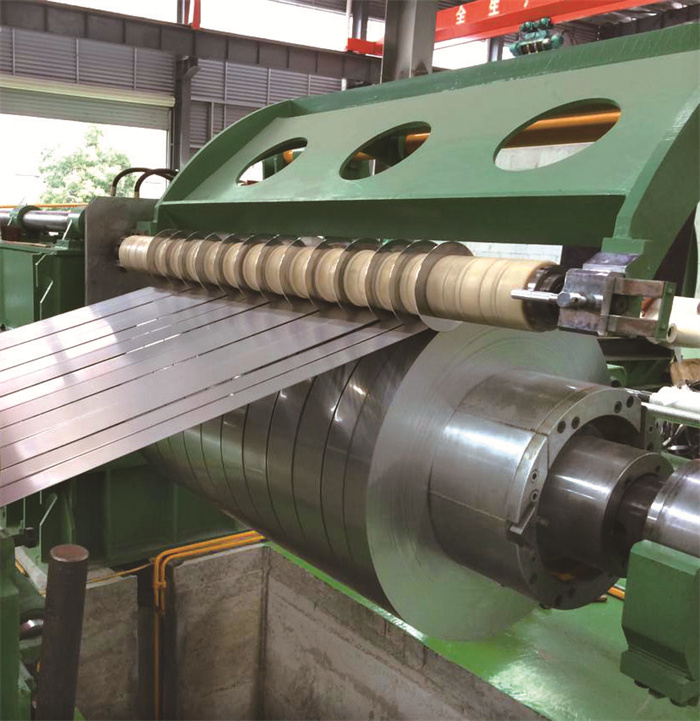

Steel Coil Slitting Line with stably speed or can be orderd by user

2. Introduction:

Steel Coil slitting line is suitable for coil strip thickness (0.2~1) mm, (0.3-2) mm, (0.3-3) mm and (0.4-4)mm; while strip width is changeable: 600mm. 1000mm, 1250mm, 1600mm, 1800mm and so on.

3. Technical Parameters for MA-(0.4～4)×1600mm Slitting Line:

• Material of coils: HRC, CRC, GI, PPGI, ST37, ST52.....
• Strip thickness: (0.4-4) mm
• Max. Strip width: 1600mm
• Coil ID: ≥Φ508mm
• Coil OD: Φ2000mm
• Max. Coil weight: 30000Kgs
• Slitter motor: 75KW DC motor
• Slitter shaft: Ф220 x 1650mm
• Disc knives on slitter shaft: ID220mm x OD330mm x 10mm, 6CrW2Si.
• Separating disc: ID85 x OD210mm x 6mm, 65Mn
• Tensioning provided by strip passing through frictional wool felt wrapping around wooden plates.
• Recoiler block: Ф508 x 1700mm
• Recoiler motor: 90KW DC motor
• Electric control: Eurotherm 590 DC driver cabinet plus control panels.
• Slitting speed: max 80m/min, adjustable.

4. Specifications:

WUXI MAZS MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD. is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and four production bases. Our main products are metallurgy machinery such as metal coil cold rolling mill lines, slitting lines, HF welded pipe mill lines, cut-to-length lines, roll forming machines, etc.

Which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the manufacturing enterprise participated in the above mentioned Equipment Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: “Proceed from Optimum in Everything; and Satisfy Customer’s Demand and Expectation with High Quality Products and Excellent Service.”

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
