One Stand Two Roller Continuous Cold Rolling Mill

Ask Lasest Price
Brand Name :	MAZS
Model Number :	MA-Ф165×250 2 HI
Certification :	CE
Price :	USD
Supply Ability :	30sets per one year
Delivery Time :	100working days
Payment Terms :	100% at sight LC or 30% deposit and 70% before shipping

Add to Cart

Product Details
Company Profile

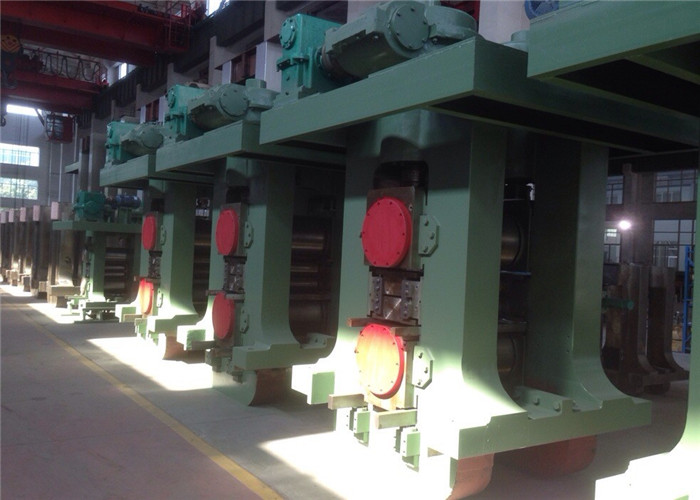

One Stand Two Roller Continuous Cold Rolling Mill

1. Description of goods:

Two roller Cold Rolling mill machine with stably quality for MA-Ф165×250-one stand China made

2. Rolling Conditions:
Material: carbon steel;
Input width: ≤150mm, thickness: 2.75mm;
Output width: ≤150mm, thickness≥: 0.8mm;
Rolling force: p＝60t;
Rolling speed: v≤13m/min;

3. Parameters of Ф165×250 Two High Cold Rolling Mill:
Rolling mill: Ф165×250 two roller mill;
Electric screw-down motor: 2.2kw×2
It can be pressed down or lifted at the same time, and pressed down or lifted separately;
Worm gear box: HT200;
Main motor: YZ type, 30kw-6;
Main reducer: JZQ650;
Coiler: It adopts hydraulic expansion cylinder;
Reducer: JZQ350;
Motor: YLJ180-160-6;

4. Technical Parameters of 2-Hi Cold Rolling Mill:

Type	Φ120 × 160	Φ150 × 220	Φ175 × 400	Φ250 × 500	Φ320 × 600	Φ400 × 800	Φ500 × 1000
Input thickness (mm)	≤4	≤4	≤4	≤8	≤10	≤20	≤30
Output thickness (mm)	0.15	≥0.35	≥0.35	≥0.4	≥0.4	≥0.5	≥0.6
Strip (mm)	10-100	≤150	300	370	450	≤600	800
Rolling pressure (T)	65	100	100	120	150	160	260
Rolling speed (m/min)	12	13	13	13	13-15	13-15	15-25
Main motor (KW)	22	30	37	55	75	155	160
Press-down motor (KW)	1.5	2.2	2.2	3	4	4	7.5
Press-down speed (mm/s)	0.09	0.09	0.09	0.09	0.09	0.12	0.12
Speed reducer	JZQ550	JZQ750	JZQ750	JZQ750	JZQ1000	JZQ115	JZQ130
Weight (T)	4.8	5.8	7	12.8	19	40	50

5. Our service:

Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.

6. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.
