1. Descriptions of goods:

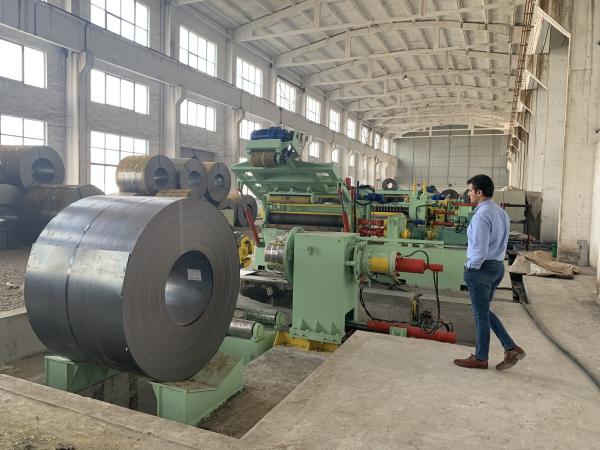

MA-(1~6) ×1600mm Steel Coil Slitting Line with 132KW coil max 30T slitting speed 60-100M/min​.

2. Our service:
Designing:
After order confirmation, we start to design the machine, such as the basement, structure,power, cutting device, programs and so on.

3.Main technical parameter

Input coils: HR/CR carbon steel, colored steel, galvanized steel, etc.
Steel Slitter Strip thickness: (1~6) mm
Strip width: 600~1600mm
Inner diameter of coils: Φ508mm, Φ610mm, Φ760mm
Max.outer diameter of coils: Φ2000mm
Max.coil weight: 30000kg
Slitting shaft: Φ260 x 1650mm
Steel Slitting Machine motor: 110KW DC
Recoiling spindle: Φ508×1700mm
Recoiling motor: 132KW DC
Steel Slitter speed: (0~70) m/min, adjustable

4. Loading:
Machine will be fixed inside container by steel wire, in order to make sure it won’t move during transportation and avoid any kinds of damage of machine and container.

5. Quality Inspection

The machines of our company have many certificates like ISO 9001, CE, SGS, etc.

Before the shipping, we have a series of quality check system, includes 3 times of inspection for every production procedure. First inspection needs the workers to check and sign on the test report. Second inspection involves department leaders to check and sign on the test report. The Third inspection needs professional inspector to check and ensure the machines are qualified.

We also give 12 month warranty time to the customer.

6.Packing photos as reference

WUXI MAZS MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD. is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and four production bases. Our main products are metallurgy machinery such as metal coil cold rolling mill lines, slitting lines, HF welded pipe mill lines, cut-to-length lines, roll forming machines, etc.

Which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the manufacturing enterprise participated in the above mentioned Equipment Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: “Proceed from Optimum in Everything; and Satisfy Customer’s Demand and Expectation with High Quality Products and Excellent Service.”

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
