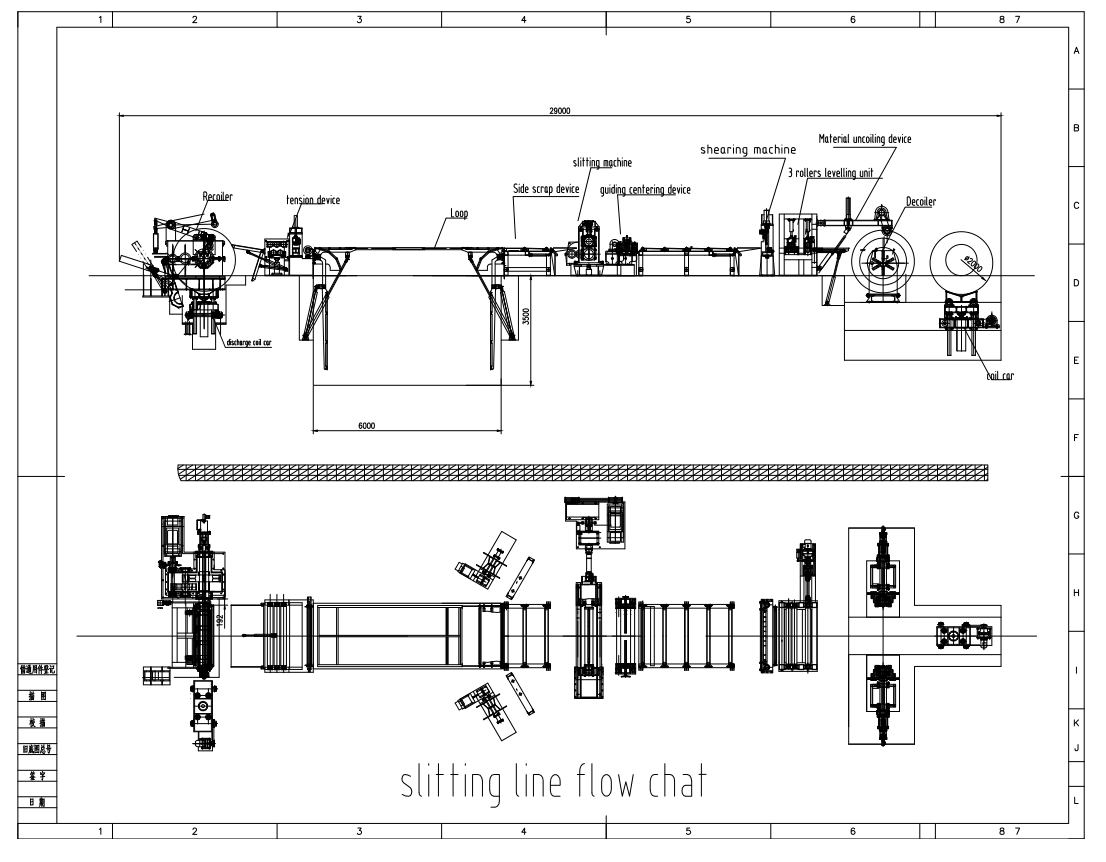

I. Equipment Flow Chart

Feeding trolley - double-cone feeding machine - coil leading device, head shoveling device, double-roller feeding, head shearing device - rectification - disc shear - waste scrap winding - looper - pre-slitting, tension machine - recoiling - unloading trolley - hydraulic control - electrical control

Thin sheet slitting line is suitable for coil strip thickness (0.2~1) mm, (0.3-2) mm, (0.3-3) mm and (0.4-4)mm; while strip width is changeable: 600mm. 1000mm, 1250mm, 1600mm, 1800mm and so on.

II. Detailed technical data for MA-(0.2～1)×600mm Thin Sheet Slitting Line :

MA-(0.2～1)×600mm Thin Sheet Slitting Line domestic customer
Material of coils: carbon steel, color steel, galvanized steel and etc
Strip thickness: (0.2~1) mm
Strip width: 600mm
Inner diameter of coils: Φ508mm
Max. Outer diameter of coils: Φ1500mm
Max. Coil weight: 8000kg
Recoiling block: Ф508 x 700
Recoiler motor: AC 37KW
Slitter shaft: Ф180 x 700
Slitter motor: AC 22KW
Material of disc cutter: ID180mm x OD300mm x 8/10mm, 6CrW2Si, HRC58-60.
Slitting speed: (0~50) m/min, adjustable

III. Specification form of Metal Coil Slitter:
