1. Product name:

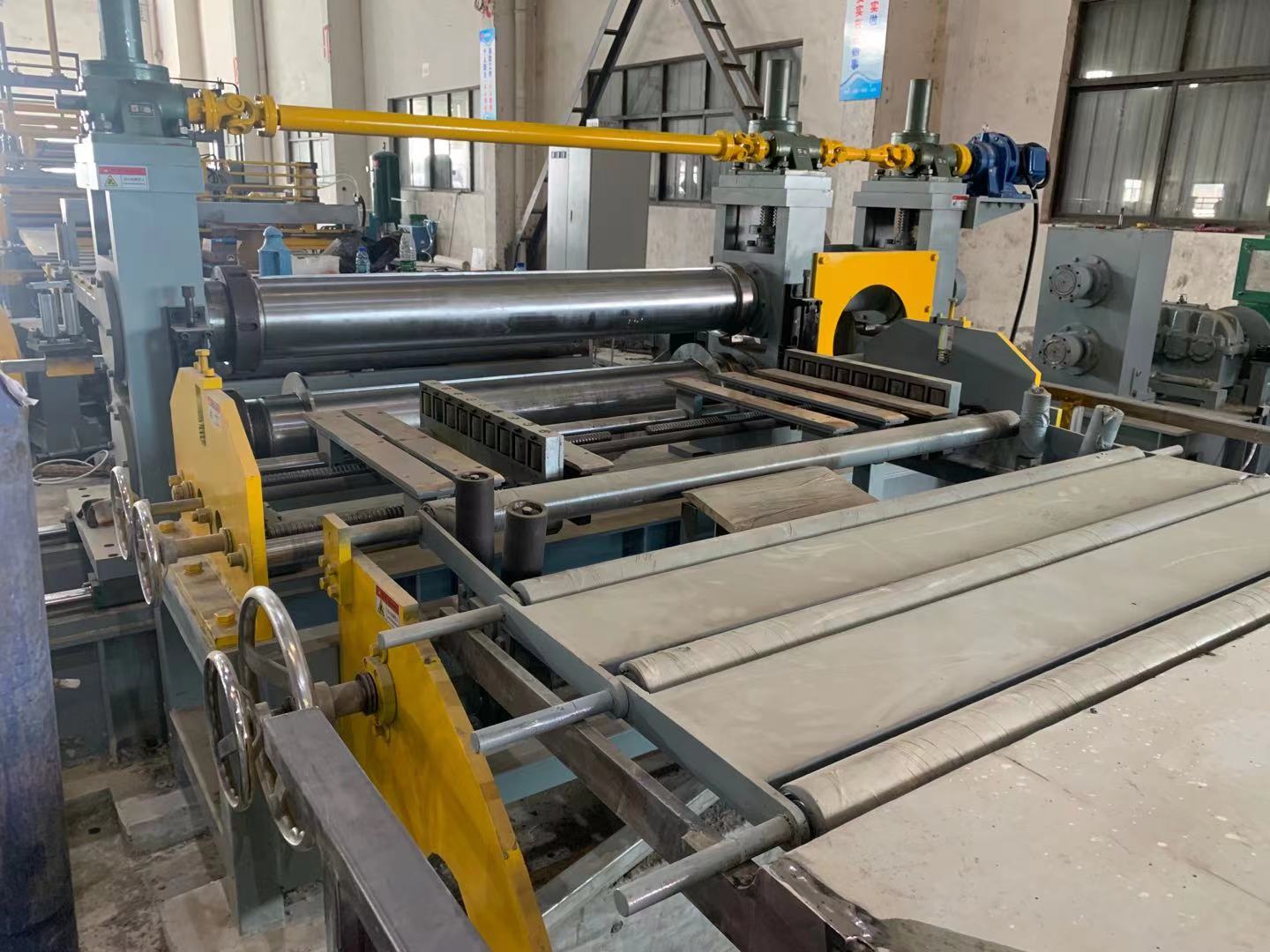

Heavy type slitting machine for coil width 1500mm with high precision capacity

2. Description:

This equipment is used to cut the raw steel coil longitudinally to the finished steel coil of the required width. By changing the cutters of different materials, it can cut the steel coils and non-ferrous metal coils of various specifications and grades longitudinally, and prepare the blanks for the next process (such as rolling, welding pipe, cold bending, profiling, stamping, welding profiles, etc.).

3. Technical Process:
Material preparation - shipping and loading - hanging and uncoiling - pressing and discharging - shovel head Presser straight head and guide wire support - traction pinch initial leveler - steel strip head and tail plate shearer - front looper support frame (looper pit) - guide alignment - longitudinal shear host - transition guide table - side wire winder - side wire take-up drum - tail pressing mechanism - rear looper support frame (looper pit) - pre splitting tension damping - splitting pinch machine - splitting shear - finished product guide head support - slitting and pressing - winding host - blanking and transportation - discharging and packaging.

4.Main techncial parameter

5.The whole line layout

WUXI MAZS MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD. is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and four production bases. Our main products are metallurgy machinery such as metal coil cold rolling mill lines, slitting lines, HF welded pipe mill lines, cut-to-length lines, roll forming machines, etc.

Which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the manufacturing enterprise participated in the above mentioned Equipment Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: “Proceed from Optimum in Everything; and Satisfy Customer’s Demand and Expectation with High Quality Products and Excellent Service.”

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
