1. Description of goods:

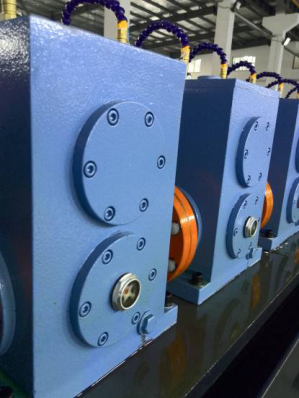

MA-325 Welded Pipe Making Machine High Frequency Welded Pipe Mill for making high quality square and rectangular pipes

2. Specification complete line:

Material to be processed: Carbon Steel, Cold Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon

Type of Production: Round Tubes, Square, Square and Rectangular Hollow Sections

Round Tube Outside Diameter: Min 114, Max 273mm

Square Hollow Section: Min 130 x130, Max 215 x 215 mm

Rectangular Hollow Section: Min 80x 100, Max140x 200 mm

Tube Thickness: Min 3.0mm Max 10.0 mm (X70≤8mm)

Forming Line Speed: Max 45m/min

(Square and Rectangular Hollow Shapes are produced at lower speeds depending on side to wall thickness ratio)

Tube Cut Length: Min 4 Max 12 meter

Length Accuracy: ± 3mm

3. Main features:

1. We can make and design all kinds of special machine according to customer's requests.
2. This is very perfect and durable equipment. We have more than 10 years experience.
3. This kind of machine has the best quality and the best price. It can measure accurately and is easy to operate.
4. We can design and manufacture the specific machine according to customers' requirements and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our products have been exported to many regions and won high reputation for high quality and reasonable price.

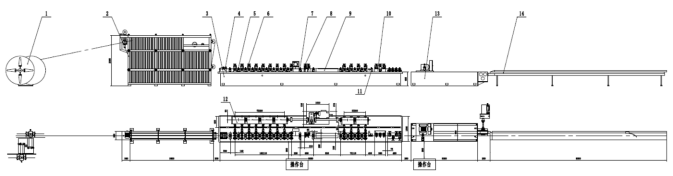

4. The whole line layout drawing as reference:

WUXI MAZS MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD. is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and four production bases. Our main products are metallurgy machinery such as metal coil cold rolling mill lines, slitting lines, HF welded pipe mill lines, cut-to-length lines, roll forming machines, etc.

Which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the manufacturing enterprise participated in the above mentioned Equipment Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: “Proceed from Optimum in Everything; and Satisfy Customer’s Demand and Expectation with High Quality Products and Excellent Service.”

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
