1. Product name:
MA-8 x 1800 Steel Cut To Length Line, Max. 30m/min, 7-8pcs/min
2. Introduction:
Middle thick plate cut-to-length line can meet customer’s request
of max line speed 40m/min by uncoiling & leveling a coil strip, and
then shearing the leveled flat strip to certain length of sheets.
This coil CTL line is especially suitable for CR, HR carbon steel
coils, GI, PPGI steel plates.
The plate cut-to-length line (coil CTL line) has one leveling
machine driven by DC or AC motor, and the length-fixing is by
encoder, shearing style is stop-shear.
The middle thick plate cut-to-length line fit steel coils with
thickness: (1~6mm, 2~8mm, 3-10mm) and changeable width, and length
of finished sheets depend on customer’s practical need.
3.Detail specification of coil CTL line:
| Model | Thickness | | Length | Leveling speed |
| MA-6 x 1600 | 1.0-6.0mm | 600-1600mm | adjustable | Max 40m/min |
| MA-8 x 1800 | 2.0-8.0mm | 1000-1800mm | adjustable | Max 30m/min |
| MA-10x 2000 | 3-10mm | 1000-2000mm | adjustable | Max 30m/min |
| Note: The data in the form just as reference according to general
ranges, we always design and make each thick plate cut-to-length
line (coil CTL line) according to each customer’s specific
requirements, so each customer can buy his own well-content line
from us. |
4. Advantages & Characteristics for this coil CTL line:
High precision;
Line speed can be up to 30m/min, 7-8pcs/min 2000mm Length sheets in
average;
Leveling precision: ±1mm/㎡;
Sheet length precision: ±0.5mm/m;
Sheet diagonal length precision: ±0.5mm/m;
5. Packaging:

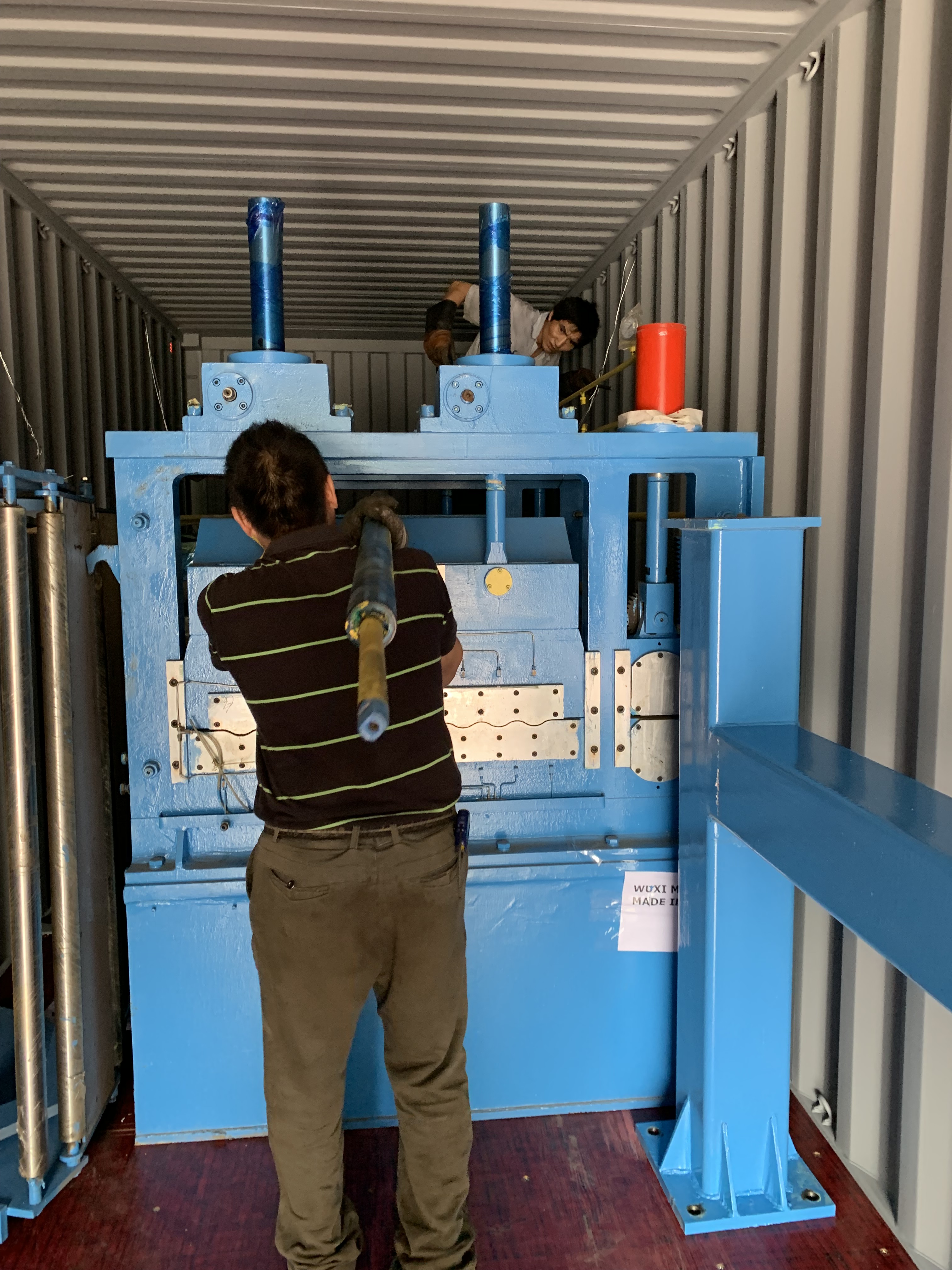

Machine will be fixed inside container by steel wire, in order to
make sure it won’t move during transportation and avoid any kinds
of damage of machine and container.
6. Warranty term: 12 months (excluding easy-broken parts)
7. Our service and features:
7.1 Design: MAZS have a matured technical team with rich experience
to develop and deisng the machines according to customer's demand
and requirements.
7.2 This is a very perfect and durable equipment. We have more than
10 years experiences.
7.3 This kind of machine has the best quality and the best price.
It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after
sales), production, installation, commissioning and maintenance
service to all customers.
7.5 Our product has been exported to many regions and won high
reputation because of the high quality and reasonable price.
