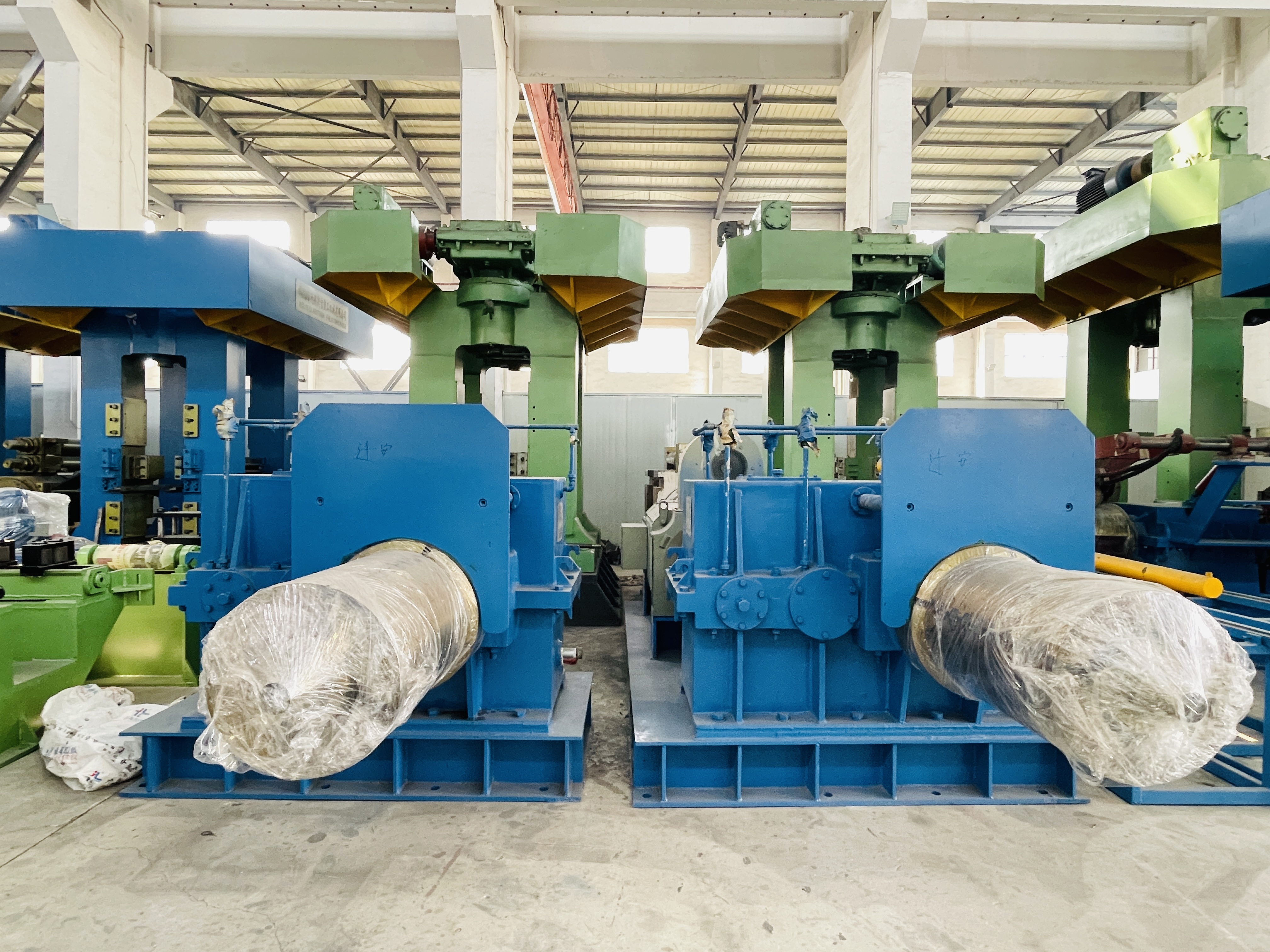

    High Speed Continuous Cold Rolling Machine With Full Mechanical Press Down Control System For Q195

    Ask Lasest Price
    Brand Name : MAZS
    Model Number : MAΦ205×900/Φ650×850
    Certification : CE,ISO
    Price : USD
    Payment Terms : T/T or 100% at sight LC or 30% deposit and 70% before shipping.
    Supply Ability : 20sets per year
    Delivery Time : 120-150 working days
    • Product Details
    • Company Profile

    High Speed Continuous Cold Rolling Machine With Full Mechanical Press Down Control System For Q195

    High Speed Four Stands Cold Rolling Mill Machine With Full Mechanical Press Down Control System For Q195,Q215,Q235


    1. Introduction:
    Due to different numbers of rollers, the metal coil cold rolling mill is divided into 2 Hi, 4 Hi, 6 Hi, and 12 Hi AGC.
    The 4-Hi cold rolling mill, one of metal coil cold rolling mill, is made from good quality raw material. A four-high cold rolling mill has four rolls, two small and two large. The two small rolls are work rolls in contact with metal coil, and the two large rolls are backup rolls which contact the back side of the small work rolls. At the same time, we are upgrading with the latest technological equipments when producing this cold rolling mill.

    Hydraulic AGC System
    Functions: AGC (hydraulic control of press-down seam), AFC (constant rolling force control), pre-control of thickness gauge, monitoring, etc
    Precision:
    Stable rolling: 0.3mm ±4.5μm; 0.5-0.8mm ±7μm
    Speed-up and speed-down rolling: 2%h≤±10μm


    2. Features:

    1. The second type of cold rolling mill controls rolling speed and its tension.
    2. The stable rolling is ensured.
    3. This machinery great guarantee the safety.

    3. Techncial parameter:

    TypeΦ190/Φ535×600Φ180/Φ650×850Φ205×900/Φ650×850Φ480/Φ1150×1380
    Work roller (mm)Φ190Φ180Φ205Φ480
    Roller length (mm)6008508501380
    Input thickness (mm)3333
    Output thickness (mm)0.50.40.250.3
    Width(mm)5007508001000
    Rolling force4000KN5000KN5500KN800T
    Rolling speed (m/min)150150210120
    Main motor (KW)4506306301200
    Press-down motor30444460
