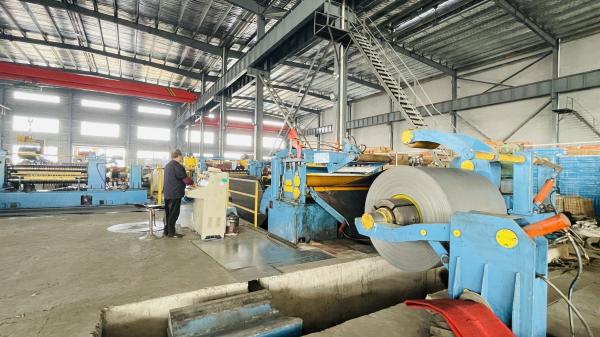

500~1800mm Sheet Metal Slitting Machine With Heavy Type Hydraulic Decoiler

1. Description of goods:

The mechanism used for the slitting process is often referred to as a slitter, a slitting machine or a slitter rewinder. To put things simply, the main role of a slitting machine is to convert (slit) papers, film and foil materials so that large rolls of these materials can be cut into narrower rolls.

2. Detail specification of Sheet Slitting Machine:
MA-(3-12)×1800mm Sheet Slitting Line
Material of coils: HR/CR carbon steel, galvanized plate, colored steel plate etc.
Metal Coil Slitter Strip thickness: (3~12) mm
Coil Slitting Machine Strip width: 500~1800mm
Max.coil weight: 35000kgs
Diameter of leveling rollers & tensioning roller: Φ210
Metal Coil Slitter Diameter of slitter shaft: Φ300
Disc cutters: 6CrW2Si, HRC56°~58°, OD500mm x ID300mm x T25mm.
Diameter of recoiler block: Φ610mm
Separating discs: 65Mn, OD250 x ID95 x T10/20mm
Coil Slitting Machine DC motors for slitter and recoiler: 160KW, 200KW.
Metal Coil Slitter speed: (0~30) m/min, adjustable

3. Specifications of Metal Sheet Slitter:

WUXI MAZS MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD. is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and four production bases. Our main products are metallurgy machinery such as metal coil cold rolling mill lines, slitting lines, HF welded pipe mill lines, cut-to-length lines, roll forming machines, etc.

Which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the manufacturing enterprise participated in the above mentioned Equipment Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: “Proceed from Optimum in Everything; and Satisfy Customer’s Demand and Expectation with High Quality Products and Excellent Service.”

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
