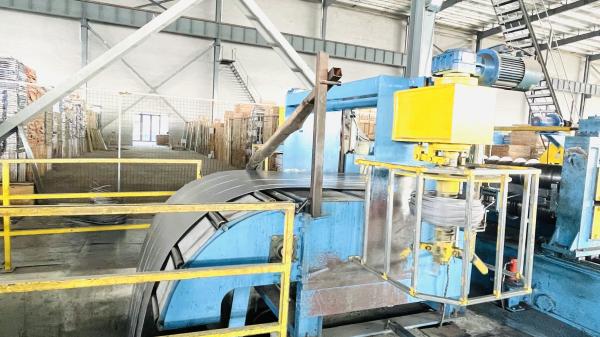

Accuracy Less Than 0.05mm Metal Sheet Slitting Machine For Cold
Rolling Material
1. Descriptions of goods:
Slitting is a metal manufacturing process wherein a coil of
material, such as aluminum or steel, is slit into the lengths and
widths specified by the end application. As the material runs
through the machine, the steel rolls are moved through extremely
sharp circular blades, making the cuts.
2. Technial parameter:
Material of coils: HR/CR carbon steel such as Q235, galvanized
plate, colored steel plate etc.
Strip thickness: (4~16) mm.
Metal Coil Slitter Strip width: 800~2200mm.
Coil Slitting Machine Max.coil weight: 40000kgs.
Diameter of leveling rollers & tensioning roller: Φ230.
Diameter of slitter shaft: Φ360.
Metal Coil Slitter Disc cutters: 6CrW2Si, HRC54°~56°, OD600mm x
ID360mm x T50mm.
Diameter of recoiler block: Φ760mm.
Coil Slitting Machine Separating discs: 65Mn, OD250 x ID110 x
T10/20mm.
DC motors for slitter and recoiler: 200KW, 250KW.
Slitting speed: (0~30) m/min, adjustable.
3. Specifications of Metal Coil Slitter:
| Model | Thickness | | Coil Weight | Finished slit | Max Slitting speed |
| MA-12 x 1800 | 3-12mm | 600-1800mm | Max 35T | Min. 60mm | 30m/min |
| MA-16 x 2200 | 4-16mm | 800-2200mm | Max 40T | Min. 100mm | 30m/min |
| MA-20x 2000 | 5-20mm | 800-2000mm | Max 40T | Min 100mm | 20m/min |
| Note: The data in the form just as reference according to general
ranges, we always design and make each sheet slitting line
according to each customer’s specific requirements, so each
customer can buy his own well-content coil slitting machine from
us. |
4. Our service:
Designing:
After order confirmation, we start to design the machine, such as
the basement, structure,power, cutting device, programs and so on.
Loading:
Machine will be fixed inside container by steel wire, in order to
make sure it won’t move during transportation and avoid any kinds
of damage of machine and container.
5. Main features:
1. We can make and design all kinds of special machine according to
customer's requests.
2. This is a very perfect and durable equipment. We have more than
10 years experiences.
3. This kind of machine has the best quality and the best price. It
has accurate measurement and easy operating.
4. We can design and manufacture the special type machine according
to the customers' requirement and we could provide technical
guiding, production, installation, debugging and maintenance
service to all customers.
5. Our product has been exported to many regions and won high
reputation because of the high quality and reasonable price.
