Carbon Steel Galvanized Steel Coil Slitting Equipment Coil Thickness 0.2~4mm

1. Product Description:

Steel slitting is a steel manufacturing process wherein a coil of steel is slit into the lengths and widths specified by the end application. This process requires machinery lines equipped with a decoiler, slitter, and a recoiler — to achieve the end product: slit steel coils, or “mults.”
A slitting machine consists of three main parts; the unwind, the slitter and the rewind. By feeding a large roll of your chosen material through the slitter's unwind, your material will then unwind and be slit into various widths, before being rewound into cores of various widths.

2. Technical Parameters:

• Material of coils: carbon steel, color steel, galvanized steel and etc
• Strip thickness: 0.2~1mm
• Strip width: 600mm
• Inner diameter of coils: Φ508mm
• Max. Outer diameter of coils: Φ1500mm
• Max. Coil weight: 8000kg
• Recoiling block: Ф508 x 700
• Recoiler motor: AC 37KW
• Slitter shaft: Ф180 x 700
• Slitter motor: AC 22KW
• Material of disc cutter: ID180mm x OD300mm x 8/10mm, 6CrW2Si, HRC58-60.
• Slitting speed: 0~50 m/min, adjustable

3. Specifications:

4. Process Flow Chat:

5. Packaging:

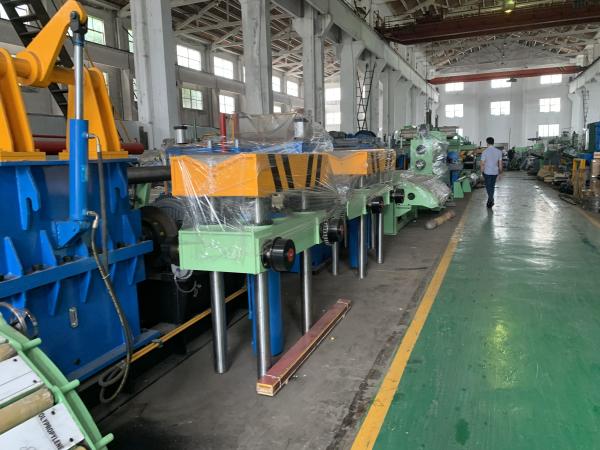

Machine will be fixed inside container by steel wire and special PET strap, in order to make sure all parts will not move during transportation and avoid any kinds of damage of machine and container.

6. Warranty term: 12 months (excluding easy-broken parts)

7. Our Service & Features:
7.1 Design: We have a matured technical team with rich experience to develop and deisng the machines according to customer's demand and requirements.
7.2 This is a very perfect and durable equipment. We have more than 10 years experiences.
7.3 This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
7.4 We provide technical support (both before, during and after sales), production, installation, commissioning and maintenance service to all customers.
7.5 Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

WUXI MAZS MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD. is a high-tech enterprise which is engaged in developing, manufacturing and trading. We have one science part and four production bases. Our main products are metallurgy machinery such as metal coil cold rolling mill lines, slitting lines, HF welded pipe mill lines, cut-to-length lines, roll forming machines, etc.

Which not only has been sold in all parts of China but also has been exported to South Asia, Middle East, Europe, American, etc.

We are the council member of China Welding Association, the standing council member of China Metal Structure Association, National Spark Plan High-tech Enterprise, Jiangsu Star Enterprise, Jiangsu Comprehensive Management Demonstration Enterprise. We are the manufacturing enterprise participated in the above mentioned Equipment Standard. We take the lead in passing ISO9000 quality system certification and CE certificate.

Our unchangeable policy: “Proceed from Optimum in Everything; and Satisfy Customer’s Demand and Expectation with High Quality Products and Excellent Service.”

Bearing grateful heart always in mind, we are willing to cooperate with all customers from home and abroad to create a new brilliance together.
